George Karypis
karypis@cs.umn.edu
Vipin Kumar
kumar@cs.umn.edu
Graph partitioning is an important problem that has extensive applications in many areas, including scientific computing, VLSI design, geographical information systems, operation research, and task scheduling. The problem is to partition the vertices of a graph in p roughly equal parts, such that the number of edges connecting vertices in different parts is minimized. For example, the solution of a sparse system of linear equations Ax=b via iterative methods on a parallel computer gives rise to a graph partitioning problem. A key step in each iteration of these methods is the multiplication of a sparse matrix and a (dense) vector. A good partition of the graph corresponding to matrix A can significantly reduce the amount of communication in parallel sparse matrix-vector multiplication [26].
The graph partitioning problem is NP-complete. However, many algorithms have been developed that find a reasonably good partition. Recently, a number of researchers have investigated a class of algorithms that are based on multilevel graph partitioning that have moderate computational complexity [4, 5, 12, 13, 15, 7, 31, 20, 19]. In these schemes, the original graph is successively coarsened down until it has only a small number of vertices, a partition of this coarsened graph is computed, and then this initial partition is successively refined by using a Kernighan-Lin type heuristic as it is being projected back to the original graph. Some of these multilevel schemes [4, 15, 20, 19] provide excellent partitions for a wide variety of graphs. These schemes provide significantly better partitions than those provided by spectral quite consistently, and are generally at least an order of magnitude faster than even the state-of-the art multilevel spectral bisection [3]. Despite their small run time, it is important to develop highly parallel formulations of these schemes for reasons discussed in Section 3.
Developing parallel formulations of multilevel graph partitioning schemes is quite challenging. Coarsening requires that nodes connected via edges be merged together. Since the graph is distributed randomly across the processors, parallel coarsening schemes can require a lot of communication [33, 1, 22]. The Kernighan-Lin refinement heuristic and its variant, that are used during the uncoarsening phase, appear serial in nature [9], and previous attempts to parallelize them have had mixed success [9, 6, 22].
In this paper we present a parallel formulation for the multilevel k-way partitioning algorithm [21]. This formulation is also generally applicable to any multilevel graph partitioning algorithm that does coarsening of the graph and refines the partitions during the uncoarsening phase [20, 3]. A key feature of our parallel formulation is that it utilizes graph coloring to successfully parallelize both the coarsening and the refinement phases. Our algorithm is able to achieve high degree of concurrency while it maintains the high quality of the partitions produced by the serial multilevel partitioning algorithm. This parallel refinement algorithm can also be used in conjunction with any other parallel graph partitioning algorithm that requires refinement (e.g., [6]) to improve its quality. We test our scheme on a large number of graphs from finite element methods, and transportation domains. Our parallel formulation on Cray T3D, produces high quality 128-way partitions on 128 processors in very small amount of time. Graphs with under 250,000 vertices are partitioned in less than a second, while graphs with a million vertices require a little over two seconds. Furthermore, the quality of the produced partitions are comparable (edge-cuts within 5%) to those produced by the serial multilevel k-way algorithm, and are significantly better (edge-cuts up to 75% smaller) than those produced by multilevel spectral bisection algorithm.
In [21] we presented a k-way graph partitioning algorithm that is based on the multilevel paradigm, whose complexity is linear on the number of vertices in the graph. The basic structure of a multilevel algorithm is very simple. The graph G = (V, E) is first coarsened down to a few thousand vertices, a k-way partition of this much smaller graph is computed (using multilevel recursive bisection [20]), and then this partition is projected back towards the original graph (finer graph), by periodically refining the partition. Since the finer graph has more degrees of freedom, such refinements improve the quality of the partitions. The experiments presented in [21] show that our algorithm produces partitions that are of comparable or better quality than those produced by the multilevel recursive bisection algorithm [20] and significantly better than those produced by the state-of-the art multilevel spectral bisection algorithm [3]. Furthermore, our k-way partitioning algorithm is up to 5 times faster than the multilevel recursive bisection, and up to 150 times faster than multilevel spectral bisection. The run time of our k-way partitioning algorithm is comparable to the run time of geometric recursive bisection algorithms [14, 32, 29, 28, 30] while it produces partitions that are generally 20% better [20]. Note that geometric methods are applicable only if coordinate information for the graph is available.
The k-way graph partitioning problem is defined as follows:
Given a graph G=(V,E) with |V|=n,
partition V into k subsets,
such that
for
,
, and
, and the number of edges of E whose
incident vertices belong to different subsets is minimized.
A k-way partition of V is commonly represented by a partition vector P of length n,
such
that for every vertex
, P[v] is an integer between 1 and k, indicating
the partition at which vertex v belongs.
Given a partition P, the number of edges whose incident vertices belong to different
subsets is called the edge-cut of the partition.
Consider a weighted graph
, with weights both on vertices and edges.
A multilevel k-way partition algorithm works as follows:
is transformed into a sequence of smaller graphs
such that
.
of the graph
is computed that partitions
into k parts, each containing roughly
vertices of .
of
is projected back to by going through intermediate
partitions
.
In the rest of this section we briefly describe the various phases of the multilevel algorithm. The reader should refer to [21] for further details.
During the coarsening phase, a sequence of smaller graphs
,
is constructed from the original graph such that
.
Graph
is constructed from
by finding a maximal matching
of and collapsing together the vertices that are incident on each edge of the matching.
In this process no more than two vertices are collapsed together because
a matching of a graph is a set of edges, no two of which are incident on the same vertex.
Vertices that are not incident on any edge of the matching are simply copied over to .
When vertices
are collapsed to form vertex
,
the weight of vertex w is set equal to the sum of the weights of vertices v and
u, and the edges incident on w is set equal to the union of the edges incident on v
and u minus the edge (v,u). If there is an edge that is incident to both on v and u,
then the weight of this edge is set equal to the sum of the weights of these edges.
Thus, during successive coarsening levels, the weight of both vertices and edges increases.
Maximal matchings can be computed in different ways [20, 21].
The method used to compute the matching greatly affects both the quality of the
partition, and the time required during the uncoarsening phase.
The matching scheme that we use is called heavy-edge matching (HEM), and
computes a matching
, such that the weight of the edges in is high.
The heavy-edge matching is computed using a randomized algorithm as follows.
The vertices are again visited in random order. However, instead of randomly matching a vertex
with one of its adjacent unmatched vertices, HEM matches it with the unmatched vertex that is
connected with the heavier edge.
As a result, the HEM scheme quickly reduces the sum of the weights of the edges in the
coarser. The coarsening phase ends when the coarsest graph has a small number of vertices.
The second phase of a multilevel k-way partition algorithm is to compute a
k-way partition of the coarse graph such that each part contains
roughly vertex weight of the original graph.
Since during coarsening, the weights of the vertices and edges of the coarser graph were set to
reflect the weights of the vertices and edges of the finer graph, contains sufficient
information to intelligently enforce the balanced partition and the minimum edge-cut
requirements.
In our partitioning algorithm, the k-way partition of is computed using our
multilevel recursive bisection algorithm [20], that our
experiments have shown that it produces good initial partitions in relatively small
amount of time.
During the uncoarsening phase, the partition of the coarser graph is projected back
to the original graph, by going through the graphs
.
Since each vertex
contains a distinct subset U of vertices of
,
the projection of the partition from to is constructed by simply
assigning the vertices in U to the same part in to the same part that vertex
u belongs in .
Even though the partition of is at a local minima, the projected partition of may not.
Since is finer, it has more degrees of freedom that can be used to improve the partition
and thus decrease the edge-cut.
Hence, it may still be possible to improve the projected partition by local refinement heuristics.
For this reason, after projecting a partition, a partition refinement algorithm is used.
The basic purpose of a partition refinement algorithm is to select vertices such that
when moved from one partition to another the resulting partition has smaller edge-cut
and remains balanced (i.e., each part has the same weight).
The multilevel k-way partitioning algorithm uses a variation of the Kernighan-Lin [25] algorithm, extended to provide k-way partition refinement. This algorithm, called greedy refinement (GR), is based on a simplified version of the Kernighan-Lin algorithm, and its complexity is largely independent of the number of parts being refined.
Key to the GR refinement algorithm is the concept of the decrease in the edge-cut
achieved by moving a vertex from one part to another (gain).
Consider the graph . For each vertex
we define the
neighborhood N(v) of v to be the union of the parts that the vertices adjacent to v
belong to. During refinement, v can move to any of the parts in N(v).
For each vertex v we compute the gains of moving v to one of its neighbor parts.
In particular, for every
we compute the external degree of v associated
with b,
as the sum of the weights of the edges (v,u) such that u belongs to
the b part.
Also we compute the internal degree of v, ID[v] as the sum of the weights of
the edges (v,u) such that u belongs to the same part as v.
Given these definitions, the gain of moving vertex v to part is
.
The GR algorithm consists of a number of iterations, and in each iteration all the vertices are checked in a random order to see if they can be moved. Let v be such a vertex. If v is a boundary vertex (i.e., N(v) is not empty), then v is moved to the part that leads to the largest reduction in the edge-cut (i.e., the part with the largest positive gain), subject to partition weight constraints. These weight constraints ensure that all partitions have roughly the same weight. If the movement of v cannot achieve any reduction in the edge-cut, it is then moved to the part (if any) that improves the partition-weight balance but leads to no increase in the edge-cut. After moving vertex v, the algorithm updates the internal and external degrees of the vertices adjacent to v to reflect the change in the partition. The GR algorithm converges after a small number of iterations (within four to eight iterations).
Even though the multilevel partitioning algorithms produce high quality partitions in a very small amount of time, being able to perform partitioning in parallel is important for many reasons and is critical to many applications. The amount of memory on serial computers is not enough to allow the partitioning of graphs corresponding to large problems that can now be solved on massively parallel computers and workstation clusters. By performing graph partitioning in parallel, the algorithm can take advantage of the significantly higher amount of memory available in parallel computers. In the context of large-scale finite element simulations, adaptive grid computations dynamically adjust the discretization of the physical domain. Such dynamic adjustments to the grid lead to load imbalances, and thus require repartitioning of the graph for efficient parallel computation. Being able to compute good partitions fast (in parallel) is essential for reducing the overall run time of this type of applications. In some problems computational effort in each grid cell changes over time [6]. For example, in many codes that advect particles through a grid, large temporal and spatial variations in particle density can introduce substantial load imbalance. Dynamic repartition of the corresponding vertex-weighted graph is crucial to balance the computation. Furthermore, with recent development of highly parallel formulations of sparse Cholesky factorization algorithms [11, 24, 10, 34], numeric factorization on parallel computers can take much less time than the step for computing a fill-reducing ordering on a serial computer, making that to be the new bottleneck. For example, on a 1024-processor Cray T3D, some matrices can be factored in less that two seconds using our parallel sparse Cholesky factorization algorithm [24], but serial graph partitioning (required for ordering) two orders of magnitude more time.
Developing a highly parallel formulation for the multilevel k-way partitioning algorithm is particularly difficult because both the task of computing a maximal matching during the coarsening phase, and the task of refining the partition during the uncoarsening phase appear to be quite serial in nature.
Out of the three phases of the multilevel k-way partitioning algorithm described
in Section 2, the coarsening and the uncoarsening phases require the bulk
of the computation (over 95%). Hence, it is critical for any efficient parallel
formulation of the multilevel k-way partitioning algorithm to successfully parallelize
these two phases. Recall that during the coarsening phase (Section 2.1),
a matching of the edges is computed, and it is used to contract the graph.
One possible way of computing the matching in parallel is to have each processor
only compute matchings between the vertices that it stores locally, and use these local
matchings to contract the graph. Since each pair of matched vertices resides on
the same processor, this approach requires no communication during the contraction step.
This approach works well as long as each processor stores relatively well connected portions
of the entire graph. In particular, if the graph was distributed among the processors
in a partitioned fashioned, then this approach would have worked extremely well.
This is not a realistic assumption in most cases, since finding a good partition of the
graph is the problem we are trying to solve by the multilevel k-way partitioner.
Nevertheless, this approach of local matchings can work well,
when the number of processors used is small relative to the size of the graph, and
the average degree of the graphs is relatively high.
The reason is that even a random partition of a graph among small number of
processors can leave many connected components at each processor.
Our earlier work on parallelizing the multilevel recursive bisection algorithm
[22] used a two-dimensional distribution of the graph,
which required the vertices of the graph to be partitioned only among
processors. Hence, this graph distribution allowed moderate amount of coarsening even
by using purely local matchings.
An alternate approach is to allow vertices belonging to different processors to be
matched together. This global matching significantly complicates the
parallel formulation because not only it requires a distributed matching algorithm,
but also requires communication when the contracted graph is constructed (since
pairs of vertices that are contracted together can reside on different processors).
However, compared to local matching schemes, global matching provides better quality matchings,
and its ability to contract the graph does not depend on the number of processors, or the existence
of a good pre-partition.
During the uncoarsening phase, the k-way partition is iteratively refined as it is
projected to successively finer graphs. The serial algorithm scans the vertices and
moves any vertices that lead to a reduction in the edge-cut. Any parallel formulation
of this algorithm will need to move a group of vertices at a time in order to speedup
the refinement process. This group of vertices needs to be carefully selected so that
every vertex in the group contributes to the reduction in the edge-cut.
For example, it is possible that processor
decides to move a set of vertices
to processor
to reduce the edge-cut because the vertices in are connected to a
set of vertices T that are located on processor .
But, in order for the edge-cut to improve by moving the vertices in , the vertices
in T must not move.
However, while selects , processor may decide to move
some or all the vertices in T to some other processor.
Consequently, when both sets of vertices are moved by and
, the edge-cut may not improve; and it may even get worse.
Clearly, the group selection algorithm must eliminate this type of unnecessary vertex movements.
One possible way of performing the k-way refinement is to pairwise refine partitions [6].
That is, assuming that we have four partitions all having common boundaries, we do a 4-way
refinement by performing the following 2-way refinements: (1,2), (3,4), (1,3), (2,4), (1,4), (2,3).
Since we have a total of four processors, two of these 2-way refinements can go on
at the same time.
The pairs that can be refined concurrently are determined by a matching of the
processor graph.
However, this parallel refinement algorithm restricts the type of vertex movements
that can be performed in each step. Hence, it lacks the global view that is available
in the serial algorithm,
in which each vertex is free to move to the part that leads to the maximum reduction
in the edge-cut.
Furthermore, any such refinement scheme will require that the vertices of each
part reside on a single processor. That is, during refinement, the vertices are physically moved
from one processor to another. This requires significant communication in the multilevel graph
partitioning context, because we need to send not only the adjacency list of the vertex
at the current coarse graph
, but also the adjacency lists of all the vertices in the graphs
, that have been collapsed to that vertex.
We have developed highly parallel formulations for all three phases of the multilevel k-way graph partitioning algorithm. Our formulation utilizes graph coloring to compute a global matching in the coarsening phase and a highly effective parallel variation of the Kernighan-Lin refinement in the uncoarsening phases. We also exploit the task-level parallelism of the initial graph partitioning algorithm to further reduce the already small run time of this phase.
Let p be the number of processors used to compute a p-way partition of the graph G=(V,E). G is initially distributed among the processors using a one-dimensional distribution, so that each processor receives n/p vertices and their adjacency lists. At the end of the algorithm, a partition number is assigned to each vertex of the graph. In the next sections we describe our parallel formulations for the three phases of the multilevel k-way partitioning algorithm described in Section 2.
A coloring of a graph G = (V, E) assigns colors to the vertices of G so that
adjacent vertices have different color. We like to find a coloring such that the number
of distinct colors used is small.
Our parallel graph coloring algorithm consists of a number of iterations.
In each iteration a maximal independent set of vertices I is selected
using a variation of Luby's [27] algorithm.
All vertices in this independent set are assigned the same color.
Before the next iteration begins, the vertices in I are removed from the
graph, and this smaller graph becomes the input graph for the next iteration.
A maximal independent set I of a set of vertices S is computed in an incremental
fashion using Luby's algorithm as follows. A random number is assigned to each vertex,
and if a vertex has a random number that is smaller than all of the random numbers of the
adjacent vertices, it is then included in I.
Now this process is repeated for the vertices in S that are neither in I nor
adjacent to vertices in I, and I is augmented similarly. This incremental
augmentation of I ends when no more vertices can be inserted in I.
It is shown in [27] that one iteration of Luby's algorithm requires a total of
such augmentation steps to find an independent set of a S.
In our implementation of Luby's algorithm, we perform only a single augmentation step to compute the independent set during each iteration. Hence, the independent set computed is not maximal. Even though this leads to an increase in the number of required colors, it significantly reduces the overall run time required to color the graph. Furthermore, this modification does not significantly impact the run times of the coarsening and uncoarsening phases, because the number of colors increases only moderately.
Luby's algorithm can be implemented quite efficiently on a shared memory parallel computer, since for each vertex v, a processor can easily determine if the random value assigned to v is the smaller among all the random values assigned to the adjacent vertices. However, on a distributed memory parallel computer, for each vertex, random values associated with adjacent vertices that are not stored on the same processor needs to be explicitly communicated. In our implementation of Luby's algorithm, prior to performing the coloring in parallel, we perform a communication setup phase, in which appropriate data structures are created to facilitate this exchange of random numbers. Note these data structures are used in all the phases of our parallel multilevel graph partitioning algorithm.
Recall from Section 2.1 that during the coarsening phase a sequence
of successively smaller graphs is constructed.
Graph is derived from by finding a maximal matching
of and then collapsing the vertices incident on the edges of .
Since the matching is a maximal independent set of edges, we can use
Luby's parallel algorithm on the dual graph of to compute a global matching
in parallel. However, computing
a matching using this algorithm is particularly expensive because
the dual graph usually has significantly more vertices than .
Our graph coloring based approach algorithm for computing a matching is faster.
Furthermore, coloring is also essential for parallelizing the partition
refinement performed during the uncoarsening phase.
Our parallel matching algorithm is based on an extension of the serial
algorithm that utilizes graph coloring to structure the sequence of
computations. Consider the graph that has been colored using our
parallel formulation of Luby's algorithm, and let Match
be a variable associated with each vertex of the graph,
that is initially set to -1. At the end of the computation, the variable
Match for each vertex v stores the vertex that v is matched to.
If v is not matched, then Match = v. To simplify the
presentation, we first describe the algorithm assuming that the target
parallel computer has a shared memory architecture, and later show how
this algorithm is implemented on a distributed memory machine.
The matching is constructed in an iterative fashion. During the
iteration, vertices of color c that have not been matched yet
(i.e., Match = -1) select one of their unmatched neighbors
using the heavy-edge heuristic, and modify the Match variable
of the selected vertex by setting it to their vertex number.
Let v be a vertex of color c and (v, u) be the edge that is selected
by v. Since the color of u is not c, this vertex
will not be selecting a partner vertex at this iteration. However, there
is a possibility that another vertex w of color c may select (w, u).
Since both vertices v and w perform their selections
at the same time, there is no way of preventing that.
This is handled as follows. After all vertices of color c select an unmatched
neighbor they synchronize. The vertices of color c that have just selected
a neighbor, read the Match variable of their selected vertex.
If the value read is equal to their vertex number, then their matching
was successful, and they set their Match variable equal to the selected vertex;
otherwise the matching fails, and the vertex remains unmatched.
Note that if more than one vertex (e.g., v and w) want to
match with the same vertex (e.g., u), only one of the writes in the
Match variable of the selected vertex will succeed; and this determines
which matching survives. However, by using coloring, we restrict which vertices
select partner vertices during each iteration; thus, the number of such conflicts
is significantly reduced. Also note that even though a vertex of color c may
fail to have its matching accepted due to conflicts, this vertex can still be matched
during a subsequent iteration corresponding to a different color.
The above algorithm is implemented quite easily on a distributed memory
parallel computer as follows. The writes into the Match variables
are gathered all together and are sent to the corresponding processors in a
single message. Similarly, the reads from the Match variables, are
gathered by the processors that store the corresponding variables and they
are send in a single message to the requested processors.
Furthermore, during this read operation, the processors who own the Match variables
also determine if they will be the ones storing the collapsed vertex in .
This is done in a randomized fashion. Our experiments has shown that this simple
heuristic leads to a very good load balance.
After a matching is computed, each processor knows how many vertices
(and the associated adjacency lists) it needs to send and how many it needs to
receive. Each processor, then sends and receives these subgraphs,
and it forms the next level coarser graph by merging the adjacency lists of the matched vertices.
The coarsening process ends when the graph has O(p) vertices.
During the partitioning phase, a p-way partition of the graph is computed
using a recursive bisection algorithm. Since the coarsest graph has only
O(p) vertices, this step can be performed serially in
time
without significantly affecting the performance of the entire algorithm.
Nevertheless, in our algorithm we also parallelize this phase by using
a parallel algorithm that parallelizes the recursive nature of the
algorithm. This is done as follows:
The various pieces of the graph are gathered to all the processors using
an all-to-all broadcast operation [26]. At this point
the processors perform recursive bisection using an algorithm that is based on
nested dissection [8] and greedy partition refinement.
However, each processor explores only a single path of the recursive bisection tree.
At the end each processor stores the vertices that correspond to its part of the
p-way partition. Note that after the initial all-to-all broadcast operation,
the algorithm proceeds without any further communication.
In the uncoarsening phase, the partition is projected from the coarse graph to the next level finer graph, and it is refined using the greedy refinement algorithm (Section 2.3). Recall that during a single phase of the refinement algorithm the vertices are randomly traversed, and the vertices that lead to a decrease in the edge cut switched parts. After each such vertex movement, the external degrees of the adjacent vertices are updated to reflect the new partition.
In the parallel formulation of greedy refinement, we retain the spirit of the serial
algorithm, but we change the order in which the vertices are traversed to determine
if they can be moved to different parts. In particular, the single phase of the
refinement algorithm is broken up into c sub-phases, where c is the number of
colors of the graph to be refined. During the phase, all the vertices of color c
are considered for movement, and the subset of these vertices that lead to a reduction in the
edge-cut (or improve the balance without increasing the edge-cut) are moved.
Since, the vertices with the same color form an independent set, the total reduction in the
edge-cut achieved by moving all vertices at the same time is equal to the sum of the
edge-cut reductions achieved by moving these vertices one after the other.
After performing this group movement, the external degrees of the vertices adjacent
to this group are updated, and the next color is considered.
During the parallel refinement, we can physically move the vertices as they change partitions. That is, each processor initially stores all the vertices of a single part, and as vertices move between parts during refinement, they can also move between the corresponding processors. However, as discussed earlier, this approach when applied to the coarsened graphs requires significant communication, since information about all the successively finer graphs need to be send. In our parallel refinement algorithm we solve this problem as follows. Vertices do not move from processor to processor, but only the partition number associated with each vertex changes. Since the vertices are initially distributed in a random order, each processor stores vertices that belong to almost all p parts. This ensures that during refinement each processor will have some boundary vertices that needs to be moved, leading to a generally load balanced computation. Furthermore, this also leads to a simpler implementation of the parallel refinement algorithm, since vertices (and their adjacency lists) do not have to be moved around. Of course, all the vertices are moved to their proper location at the end of the partitioning algorithm, using a single all-to-all personalized communication [26].
The balance conditions are maintained as follows. Initially, each processor knows the weights of all p parts. During each refinement sub-phase, each processor enforces balance constraints based on these partition weights. For every vertex it decides to moves it locally updates these weights. At the end of each sub-phase, the global partition weights are recomputed, so that each processor knows the exact weights. Even though, this scheme is less exact than the serial balance constraints, our experiments have shown that the hybrid of local and global partition weight constraints is able to produce well balanced partitions.
The above parallel refinement algorithm is highly concurrent, since the number of colors is very small (less than 20 for 3D finite element meshes) while the number of vertices is very large. Furthermore, since both the serial and parallel refinement algorithms are similar in spirit, both exhibit similar partition refinement capabilities. Furthermore, this coloring-based parallel refinement algorithm can be used in any other algorithm that uses Kernighan-Lin-type local refinement.
We evaluated the performance of our parallel multilevel k-way graph partitioning algorithm on a wide range of graphs arising in different application domains. The characteristics of these graphs are described in Table 1.
We implemented our parallel multilevel algorithm on a 128-processor Cray T3D parallel computer. Each processor on the T3D is a 150Mhz Dec Alpha (EV4). The processors are interconnected via a three dimensional torus network that has a peak unidirectional bandwidth of 150Bytes per second, and a small latency. We used SHMEM message passing library for communication. In our experimental setup, we obtained a peak bandwidth of 90MBytes and an effective startup time of 4 microseconds.
Since, each processor on the T3D has only 64MBytes of memory, some of the larger graphs could not be partitioned on a single processor. For this reason, we compare the parallel run time on the T3D with the run time of the serial multilevel k-way algorithm running on a SGI Challenge with 0.5GBytes of memory and 150MHz Mips R4400. Even though the R4400 has a peak integer performance that is 10% lower than the Alpha, due to the significantly higher amount of secondary cache available on the SGI machine (1 Mbyte on SGI versus 0 Mbytes on T3D processors), the code running on a single processor T3D is about 20% slower than that running on the SGI. Since the nature of the multilevel algorithm discussed is randomized, we performed all experiments with fixed seed.

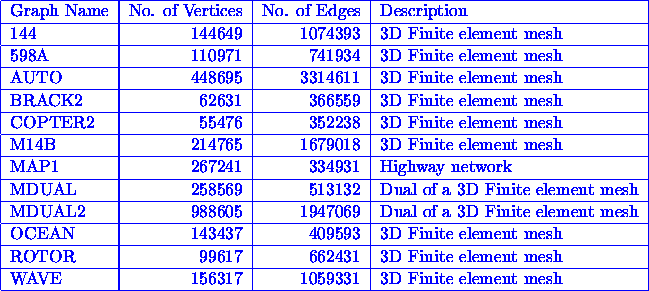

Table 1: Various graphs used in evaluating the parallel multilevel k-way graph partitioning algorithm.
Note that the algorithm used for computing the initial partition of the graph in the parallel multilevel algorithm (see Section 4.3) is different than the multilevel recursive bisection used in the serial algorithm. The multilevel algorithm produces significantly better initial partitions than nested dissection but it requires more time. Consequently, the initial partitioning step may become a bottleneck for very large number of processors, particularly for smaller graphs. However, due to the k-way refinement performed in the uncoarsening phase, the final partitions are only slightly worse than those produced by the serial k-way algorithm (that uses the multilevel recursive bisection algorithm for computing initial partitions).
Table 2 shows the quality of the partitions produced by the parallel k-way algorithm as well as the amount of time it took to produce these partitions on a Cray T3D for the problems of Table 1. Partitions for in 16, 32, 64, and 128 parts are shown, each produced on 16, 32, 64, and 128 processors, respectively. Table 3 shows the quality of the partitions and the amount of time required by the serial algorithm running on the SGI for the same problems.
Table 2: The performance of the parallel multilevel k-way partitioning algorithm on Cray T3D.
For each graph, the performance is shown for 16-, 32-, 64-, and 128-way partitions on
16, 32, 64, and 128 processors, respectively. The times are in seconds.
Table 3: The performance of the serial multilevel k-way partitioning algorithm.
For each graph, the performance is shown for 16, 32, 64, and 128-way partitions.
The times are in seconds on an SGI Challenge.
The quality of the partitions produced by the parallel relative to those produced by the serial k-way partitioning algorithm is graphically shown in Figure 1. From this figure we see that the edge-cut produced by the parallel algorithm is quite close to that produced by the serial algorithm. For most graphs, the edge-cut of the parallel algorithm is worse than that of the serial algorithm by at most a factor of 5%, while for some graphs, the parallel algorithm is somewhat better (by 1% to 3%). Since both the coarsening and uncoarsening phases of the parallel algorithm are similar (Sections 4.2 and 4.4), the reason for the small deviation compared to the serial algorithm can be traced back to the use of nested-dissection in the initial partition phase. However, the quality differences can be eliminated if the multilevel bisection is used during the initial partitioning phase.
The quality of the parallel partitioning algorithm relative to the widely used, multilevel spectral bisection (MSB) [3], is shown in Figure 2. The MSB partitions were produced using the state-of-the art MSB algorithm as implemented in the Chaco 2 [16] graph partitioning package. From this figure we see that the quality of our parallel multilevel k-way partitioning algorithm is usually 10% to 20% better than that of MSB, and for some graphs, it is up to 75% better.
Figure 1: Quality of the partitions produced by the parallel relative to the
serial multilevel k-way partitioning algorithm.
For each graph, the ratio of the edge-cut of the parallel
to that of the serial algorithm is plotted for 16-, 32-, 64-, and 128-way partitions.
Bars under the baseline indicate that the parallel algorithm produces partitions with smaller edge-cut
than the serial algorithm.
Figure 2: Quality of the partitions produced by the parallel multilevel k-way partitioning algorithm
relative to the multilevel spectral bisection (MSB).
For each graph, the ratio of the edge-cut of the parallel
to that of the serial algorithm is plotted for 16-, 32-, 64-, and 128-way partitions.
Bars under the baseline indicate that the parallel algorithm produces partitions with smaller edge-cut
than the spectral bisection algorithm.
From Table 2 we can see that the run time of the parallel algorithm is very small. For 9 out of the 12 graphs, the parallel algorithm requires less than one second to produce an 128-way partition on 128 processors. Even for the larger graphs (AUTO with half a million vertices, and MDUAL2 with one million vertices) it requires only 2.2 seconds.
Table 4: The amount of time (in seconds) required by the different phases of the parallel
partitioning algorithm for some graphs, on 16 and 128 processors.
Table 4 analytically shows the amount of time required by the different phases of the parallel graph partitioning algorithm for some of the graphs of our experimental testbed. Note that during the communication setup phase, the processors determine how many interface vertices they need to send and receive, and setup the appropriate data structures for this communication. From this table we see that as the number of processors increase the amount of time required by each phase decreases. The only exception is the initial partitioning phase, for which the time actually increases. This is because, both the size of the coarsest graph and the number of parts increases with the number of processors. However, the amount of time required by this phase is very small compared to the run time of the entire partitioning algorithm.
The speedup achieved by the parallel algorithm on Cray T3D over the serial algorithm running on SGI is shown in Figure 3. For the smaller graphs, the parallel algorithm achieves a speedup in the range of 14 to 17 on 128 processors, and as the size of the graphs increases the speedup improves to the 20 to 35 range. As discussed earlier, due to architectural differences between Cray T3D and SGI Challenge, the run time of the multilevel partitioning code running on a single processor of the SGI is somewhat smaller than that running on a single processor of the Cray T3D. Thus, the actual speedups (i.e., with respect to the serial algorithm algorithm running on a single processor of the Cray T3D) are higher by a factor of about 20%. Furthermore, as discussed in Section 4, the parallel algorithm incurs the additional computational overhead of computing graph coloring during the coarsening phase, an overhead that it is not present in the serial algorithm. In addition to the coloring overhead, the parallel algorithm also requires a communication setup phase that is used to exchange information about the interface vertices. Again, on the serial algorithm, this overhead is not present. For instance, for AUTO, from Table 4 we see that out of the run time of 2.2 seconds on 128 processors, the above two overheads take 0.8 seconds, which is 36% of the total run time. Also note that for MAP1, MDUAL, and OCEAN, for which the above two overheads are smaller (since these graphs have smaller average degrees), they achieve better speedup than other graphs with similar number of vertices.
Figure 3: The speedup achieved by the parallel partitioning algorithm running on Cray T3D over the
serial algorithm running on SGI.
For each graph, the speedup on 16, 32, 64, and 128 processors is shown.
The experiments shown in Table 2 were performed by initially distributing the graphs to the processors in a block distribution. That is as the graphs were read from the file, consecutive n/p vertices were assigned to each processor. We refer to this as the as-is distribution. This ordering is somewhat different than the random distribution that was assumed in the description of the parallel algorithm (Section 4), and was chosen for its simplicity. To study the performance of our parallel algorithm under different initial graph distribution schemes we performed experiments using both random and pre-partitioned distributions. In both cases, a permutation was applied to the graph before distributing onto the processors. In the case of random distribution, this permutation was computed randomly, whereas in the case of the pre-partitioned distribution, this permutation was computed from a serial p-way partition of the graph.

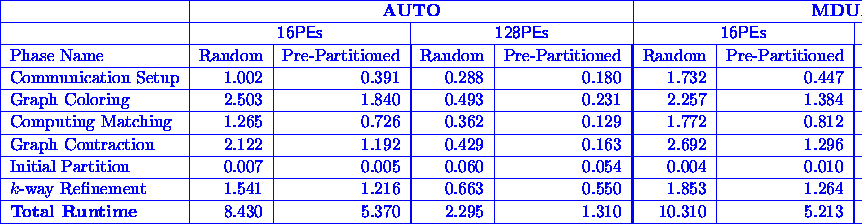

Table 5: The amount of time (in seconds) required by the different phases of the parallel partitioning
algorithm for different initial vertex distributions, on 16 and 128 processors.
Table 5 shows run time of these two different distribution schemes for two of the larger graphs in our experimental testbed. Comparing these run times with those shown in Table 4 we see that there is little difference between the random and the as-is distributions. The run time of the random distribution is only higher by less than 1%, which was expected since both distributions result in initial partitions that cut more than 90% of the edges. However, the run time is significantly reduced when the pre-partitioned distribution is used. For example, in the case of MDUAL2, on 16 processors, the run time of the pre-partitioned distribution is almost half of that achieved by either the random or the as-is distributions. This reduction in run time is due to the following two reasons: (a) reduced communication requirements, and (b) better cache utilization.
For the pre-partitioned graph distribution, the number of edges that get cut as a result of the initial distribution is significantly reduced to only 7.5% for AUTO, and 3.6% for MDUAL2. Consequently, the distributed graph has significantly fewer interface vertices. In each of the graph coloring, matching, contraction, and partition refinement algorithms, communication is a significant fraction of the overall run time. So reduction in the run time is due to reduced communication required for the pre-partitioned graph. The reduced communication requirements can be clearly seen in the amount of time required by the communication setup phase (especially for 16 processors), whose complexity highly depends on the number of interface vertices. Besides reducing communication overheads, the much better data locality that is produced by the pre-partitioned distribution, also significantly improves cache utilization. This is particularly important on a machine like the Cray T3D, since it has only a small amount of primary cache (8Kbytes) and no secondary cache. This improved cache reuse is the primary reason for the almost 50% improvement achieved by the the coloring, matching, and contraction algorithms. The primary significance of the cache can also be seen when looking at the time required by the k-way refinement. In this case, the improvements are not as dramatic (somewhere between 27% and 40% on 16 processors). This is because, during k-way refinement only a few vertices get moved; hence, there is limited cache reuse.
Developing parallel graph partitioning algorithms has received a lot of attention [9, 14, 33, 6, 18, 2, 1, 22] due to its extensive applications in many areas. However, most of this work was concentrated on parallelizing algorithms that produce poor-quality partitions, such as serial algorithms based on geometric graph partitioning [14, 6], or algorithms that have very high computational requirements, such as spectral bisection [18]. Recently, a number of researchers have developed graph partitioning algorithms that are based on the more powerful and less expensive multilevel graph partitioning algorithms [33, 1, 22]. However, with the exception of our earlier work [22], none of these parallel algorithms perform any partition refinement, that is shown to significantly improve the quality of the produced partitions [15, 20].
Raghavan [33] presents a parallel formulation of a nested dissection ordering algorithm that is based on multilevel graph partitioning. Raghavan's parallel algorithm uses one-dimensional partitioning of the graphs and construct successive coarser graphs by computing matchings between different pairs of processors at each coarsening level. Although this matching is more powerful than the local matching scheme described in Section 4, it does not produce global matchings across all processors. Her multilevel algorithm finds a bisection of the coarser graph and then it is projected onto the original graph without any refinement. This algorithm obtains speedup in the range of 25 to 40 on 128-processor CM5. Due to the absence of partition refinement, the orderings produced by this algorithm are significantly worse than those produced by multilevel ordering algorithms [20, 17].
Barnard [1] has developed a parallel formulation of multilevel spectral algorithm. This algorithm uses a one-dimensional mapping of the graph to the processors and it uses a parallel formulation of Luby's [27] algorithm to compute a maximal independent set of vertices to construct the next level coarser graph. Note that the coarsening scheme used in Barnard's algorithm can not be used in any multilevel graph partitioning algorithm [4, 15, 20, 21, 33]. The reason is that the coarsened graph of the multilevel spectral algorithms does not have enough information to enforce balance constraints and partition quality. This coarsening scheme uses a maximal independent set of vertices (instead of a maximal independent set of edges used in multilevel graph partitioning algorithms); hence, it can use Luby's algorithm directly on the original graph. Table 6 shows the parallel performance of the of multilevel spectral bisection and the our multilevel k-way partition for two of the problems in our experimental testbed. From this table we see that our parallel algorithm produces partitions whose quality is significantly better than those produced by the multilevel spectral bisection algorithm. In particular for MDUAL on 16 processors, our algorithm cuts 2.8 times fewer edges than the spectral algorithm. Furthermore, our algorithm is 25 to 30 times faster than the spectral algorithm, which is consistent with the serial computational requirements of the two algorithms. Since both parallel formulations of multilevel spectral bisection and the multilevel k-way partitioning algorithms have similar communication overheads (i.e., proportional to the number of interface vertices), their relative run time requirements do not change with the use of parallel computers, as both scale similarly.

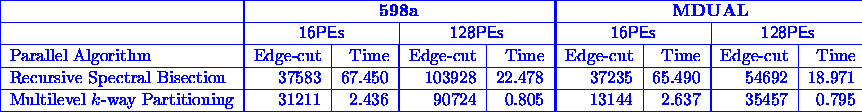

Table 6: The performance of the parallel multilevel spectral bisection and our parallel k-way
partitioning algorithms on 16- and 128-processor Cray T3D.
Diniz et al., [6] present a parallel formulation of the inertial algorithm [30] for partitioning. This algorithm computes a k-way partition using inertial recursive bisection (which is naturally parallel), and then does pairwise partition refinement using the Kernighan-Lin heuristic as described in Section 4. Their experiments show that the quality of the partitions produced by the parallel inertial algorithm, are 10% to 30% worse compared to the serial implementation of the inertial algorithm that uses sequential KL refinement. This decrease in partition quality is due to fact that pairwise partition refinement is not as effective as the coloring-based global refinement scheme used by our algorithm.
Karypis and Kumar [22] present a parallel formulation of the serial multilevel recursive bisection algorithm [20] for graph partitioning and sparse matrix ordering. That algorithm uses a two-dimensional distribution of the graph to the processors and computes a local heavy-edge matching on the diagonal processors as discussed in Section 4. When the size of the matchings produced in successive coarsening levels becomes small, the graph is successively folded to smaller halves of the processor grid. This local matching produces sufficient coarsening as long as the average degree of the coarse graphs is sufficiently large (proportional to the square root of the number of processors). However, if the degree of the graphs is small (as it is the case for finite element meshes and their duals), then this local matching cannot sufficiently reduce the size of the graph before folding is required. Hence, for these graphs the speedup achieved is somewhat limited. For common problems, our parallel formulation of multilevel k-way partitioning presented in this paper is 3 to 4 times faster on 128 processors, while the quality is better by about 5% to 10% compared with the formulation in [22].
In this paper we presented a scalable and highly parallel formulation of one of the
fastest and most accurate serial graph partitioning algorithms ever. Our parallel formulation
of the multilevel k-way partitioning algorithm, is able to produce very good partitions of
very large unstructured graphs in very small amount of time. Graphs with over a million vertices
can be partitioned in 128 parts in a little over two seconds on an 128-processor Cray T3D.
The theoretical analysis presented in [23] shows that both the
run time and scalability of our algorithm is within a factor of
from
the theoretical lower bound for any parallel graph partitioning algorithm.
To our knowledge this is the first algorithm that successfully provides a highly parallel partitioning refinement algorithm. Even though our partition refinement is based on a relatively simple variant of the Kernighan-Lin type of algorithms, the concurrency that is exposed by using coloring can also be used to implement more sophisticated algorithms. For example, refinement algorithms that are able to climb out of local minima by performing some moves that do not decrease the edge-cut [15, 20], can be easily implemented using the techniques described in this paper.
The performance achieved by our algorithm allows for the development of efficient and scalable parallel formulations for many diverse problems that utilize and operate on unstructured graphs. High quality domain decomposition techniques used in scientific computing [35] can be completely parallelized, removing the computational bottleneck created by serial domain decomposition prior to parallel computation. This also allows for the creation of highly parallel preconditioners for iterative methods based on domain decomposition as well as on incomplete factorizations [23]. Furthermore, adaptive finite element methods can now be effectively parallelized, since the mesh can be repartitioned on the fly very fast. In such applications, the adaptation of the mesh will result in a localized increase in the number of mesh elements. One way of repartitioning such a mesh is to take the added elements and equally distribute them among the processors, prior to invoking our parallel k-way refinement algorithm. Since the graph is almost nicely partitioned (with the exception of the added elements), our parallel algorithm will achieve even higher performance due to reduced communication overheads and better cache utilization (see Table 5). Furthermore, in the context of repartitioning adaptively refined graphs, the performance of our parallel multilevel k-way partitioning algorithm can be further reduced. In this context, both the coloring and the matching phases can be modified to utilize much faster serial algorithms on the vertices that are internal to the domains assigned to each processor. By only requiring to perform distributed coloring and distributed matching for the interface nodes of the various domains, the overall run time of these phases will reduce significantly.
This work was supported by NSF CCR-9423082 and by Army Research Office contract DA/DAAH04-95-1-0538, and by Army High Performance Computing Research Center under the auspices of the Department of the Army, Army Research Laboratory cooperative agreement number DAAH04-95-2-0003/contract number DAAH04-95-C-0008, the content of which does not necessarily reflect the position or the policy of the government, and no official endorsement should be inferred. Access to computing facilities was provided by Minnesota Supercomputer Institute, Cray Research Inc, and by the Pittsburgh Supercomputing Center. Related papers are available via WWW at URL: http://www.cs.umn.edu/ karypis
The parallel multilevel spectral bisection of Barnard was made available to us by Cray Research.
